For food and drink
These control valves are for sanitary processes such as for food, drink and chemicals.

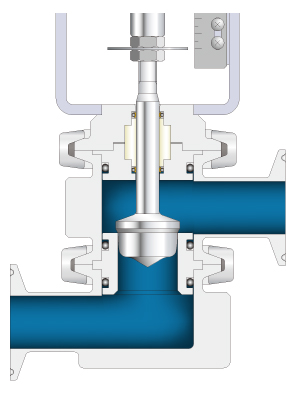

They feature the clamping type block construction with less trapped liquid.
They are easy to disassemble and clean, and excellent in sanitary and maintenance performance.
They feature the clamping type block construction with less trapped liquid.
They are easy to disassemble and clean, and excellent in sanitary and maintenance performance.
●Standard specifications
| Model number | T-8910 | T-8920 |
|---|---|---|

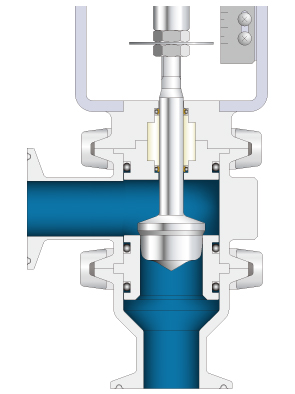

| Model name | Sanitary control valves | Angle type sanitary control valves |
| End connection | IDF/ISO Standard screw,W-ferrule clamp | |
| Nominal size(A) | 1/2～4 | |
| Rated Cv | 0.02～180(On-off:0.4～205) | |
| Body materials | SUS304、SUS316、SUS316L | |
| Bonnet materials | SUS304、SUS316、SUS316L | |
| Trim materials | SUS304、SUS316、SUS316L | |
| Gasket materials | FPM O"ring | |
| Internal finish | Buffing #400 | |
| Flow chracteristics | Equal percentage(Range-ability 50:1),Linear,Quick opening(On-off) | |
| The choice of actuator | Diaphragm motor:T-5 series | |
| Option | Specially packing Trim treatment:Stellite Internal finish:Electrochemical polishing |
|
●Delivery list of fluid names
Drinking water(Carbonated drinks, fruit juice drinks, etc.)
／Oolong tea concentrate
／Hot water
／Fruit juice concentrate
／Pigment
／Air
／Tea concentrate
／Yeast extract
／Fragrance
／Coffee concentrate
／Pure water
／Vinegar
／Vegetable oil
／Purified water
／Pharmaceutical extract
／Carbon dioxide
／Plants and animals extract
／Molasses
／Tonic drink
／Culture water
／Beer
／Pure steam
／Milk
／Sterile air
／Many other
