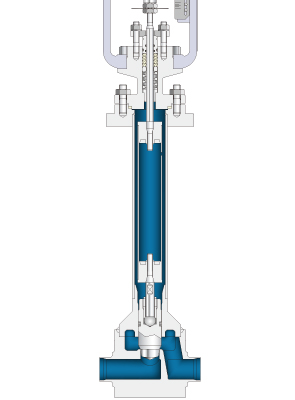

Super low temperature control valves
This valve is a control ultla-low temperature fluid, such as liquid helium whose service temperature is close to the absolute zero degree.
The valve is installed by welding in a vacuum container.
The valve trim has a structure which prevents galling themal oscillation at low-temperature operation and provides good shutoff performance even if the pipe is deformed to some degree due to thermal change.
The valve is installed by welding in a vacuum container.
The valve trim has a structure which prevents galling themal oscillation at low-temperature operation and provides good shutoff performance even if the pipe is deformed to some degree due to thermal change.
●Standard specifications
| Model number | T-8810 |
|---|---|
| Model name | Super low temperature control valves |
| End connection | Socket weld end, Butt weld end |
| Nominal size（A） | 6～50 |
| Rated Cv | 0.01～48 |
| Body materials | SUS316L |
| Bonnet materials | SUS316L |
| Extension pipe materials | SUS316L |
| Trim materials | SUS316L |
| Gasket materials | Serrated type metal gaskets |
| Flow characteristics | Equal percentage（Range-ability 50：1） Linear,Quick opening（On-off） |
| The choice of actuator | Diaphragm motor：T-5 series, Air cylinder Electronic type：MSP/PSN series, Electromotive type:CMS series |
| Option | Helium test,Vacuum jakets, Thermal anchor Trim shape：PCTFE disk Trim treatments:Stellite |
●Delivery list of fluid names
Liquefied helium／Liquefied air／Helium gas／Liquefied nitrogen／Neon／Liquefied oxygen／Hydrogen gas／Liquefied hydrogen／Liquid argon
